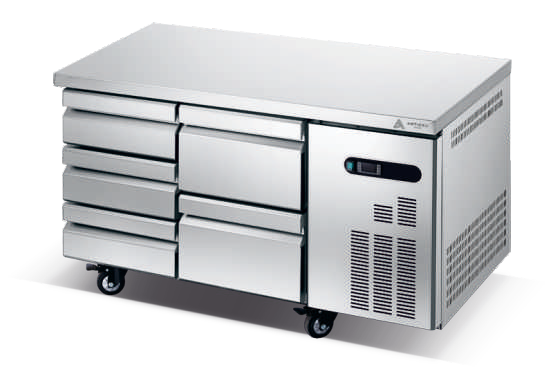

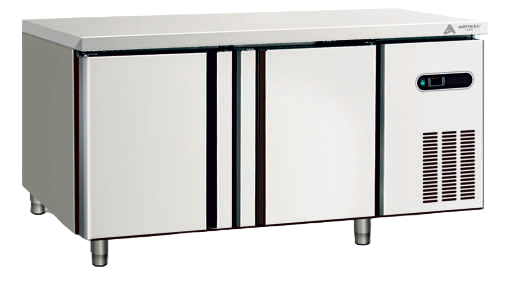

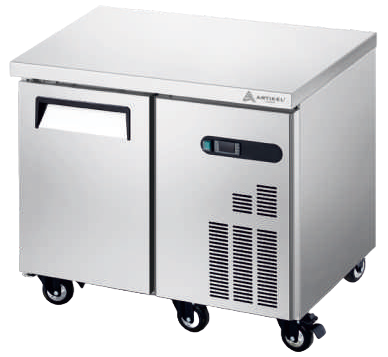

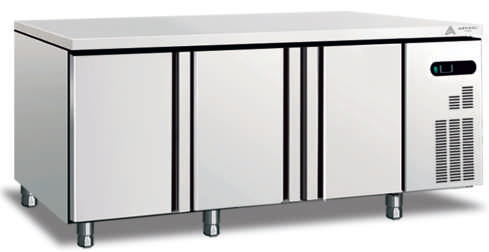

Refrigerated Counters
AWR900/AWF900
AWR1350L2/AWF1350L2
Key Features & Specifications
No welding or polishing on the exterior surface of the unit, ensuring a clean and durable finish.
Designed to operate efficiently at an ambient temperature of 32°C.
Interior constructed with AISI 304 stainless steel, ensuring hygiene, corrosion resistance, and long life.
High-speed fan motor ensures uniform air circulation, allowing cooled air to reach every corner of the cabinet.
Digital thermostat with temperature display enables precise temperature control for food storage.
Automatic defrosting system operates based on time and temperature settings for optimal performance.
Integrated drainage system inside the unit for effective removal of defrosting water.
Door gasket is easy to remove, making cleaning and replacement simple and convenient.
Wide rounded edges and corners for easy cleaning and improved hygiene.
Shelf size options available: 530 × 325 mm or 600 × 400 mm.
Optional accessories: Castors or adjustable feet, depending on installation requirements.
| Model No. | AWR900 | AWF900 | AWR1350L2 | AWF1350L2 |
|---|---|---|---|---|
| Cooling Type | Ventilated | Ventilated | Ventilated | Ventilated |
| Defrosting Type | Automatic | Automatic | Automatic | Automatic |
| Capacity [L] | 175 | 175 | 260 | 260 |
| Width [mm] | 900 | 900 | 1350 | 1350 |
| Depth [mm] | 700 | 700 | 700 | 700 |
| Height [mm] | 850 | 850 | 850 | 850 |
| Temp. Range [°C] | -2/+10 | -18/-22 | -2/+10 | -18/-22 |
| Ambient Temp. [°C] | 43 T | 43 T | 43 T | 43 T |
| Refrigerant | R134A | R404A | R134A | R404A |
| Ext & Int. Materials | AISI304 | AISI304 | AISI304 | AISI304 |
| Door Quantity | 1 | 1 | 2 | 2 |
| Voltage / Frequency | 220V / 50HZ | 220V / 50HZ | 220V / 50HZ | 220V / 50HZ |
AWR1800L3/AWF1800L3
AWR1350D6/AWR1800D9
| Model No. | AWR1800L3 | AWF1800L3 | AWR1350D6 | AWR1800D9 |
|---|---|---|---|---|
| Cooling Type | Ventilated | Ventilated | Ventilated | Ventilated |
| Defrosting Type | Automatic | Automatic | Automatic | Automatic |
| Capacity [L] | 400 | 400 | 260 | 400 |
| Width [mm] | 1800 | 1800 | 1350 | 1800 |
| Depth [mm] | 700 | 700 | 700 | 700 |
| Height [mm] | 850 | 850 | 850 | 850 |
| Temp. Range [°C] | -2/+10 | -18/-22 | -2/+10 | -2/+10 |
| Ambient Temp. [°C] | 43 T | 43 T | 43 T | 43 T |
| Refrigerant | R134A | R404A | R134A | R134A |
| Ext & Int. Materials | AISI304 | AISI304 | AISI304 | AISI304 |
| Door Quantity | 3 | 6 | 6 | 9 |
| Voltage / Frequency | 220V / 50HZ | 220V / 50HZ | 220V / 50HZ | 220V / 50HZ |
