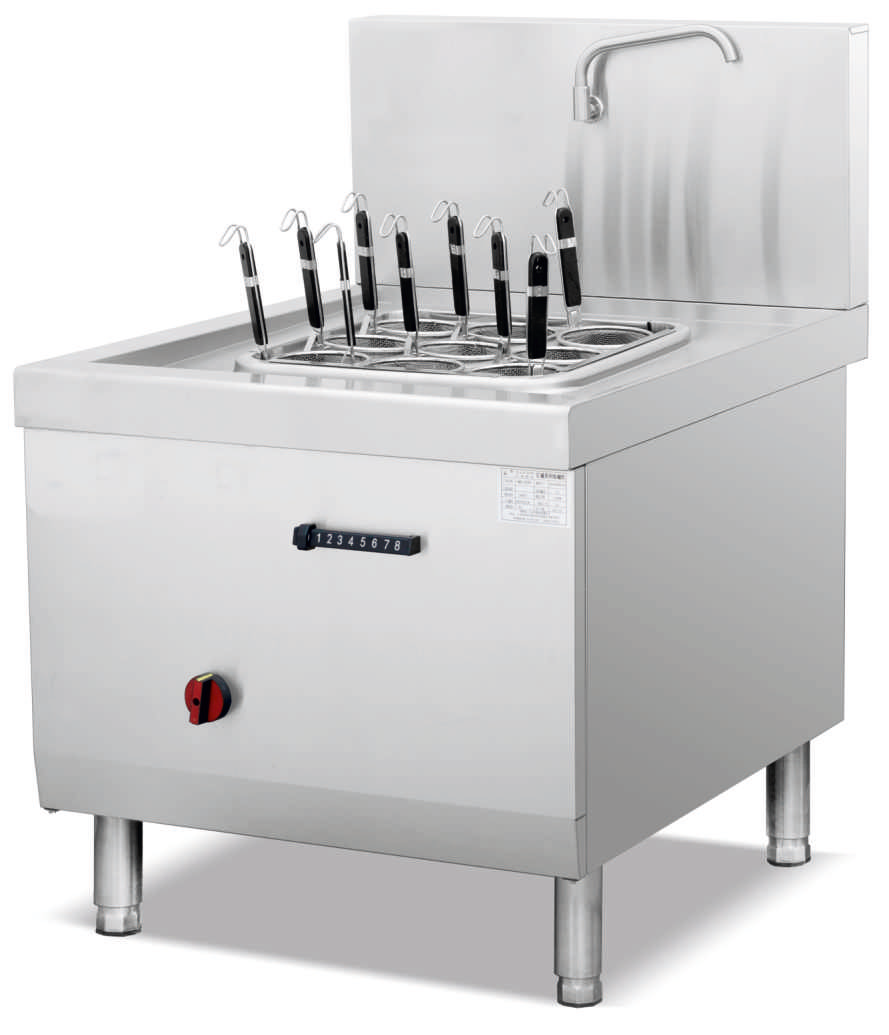

Noodle Cooker YZ-TM-16
Description
The modular gas noodle cooker YZ-TM-16 features an 800 mm depth and a 9.5 kW heater. It is equipped with a swing door and a salt-resistant stainless steel tank with a 27-liter capacity and a cold-water filling faucet tank, easily operable from the front panel.
Designed for continuous and high-speed noodle cooking, the YZ-TM-16 is an ideal choice for Asian restaurants. Manufactured from AISI 304 stainless steel with a 1.5 mm thickness, the temperature-controlled noodle tank is fully welded for durability and hygiene.
Main Features
Tank capacity up to 27 liters.
Suitable for up to 9 noodle baskets.
Outer tank surface coated with special black paint to enhance thermal efficiency.
Manual water-filling system with an integrated control knob on the front panel.
Automatic thermal cut-off protection in case of overheating.
Construction
Entire external construction made of AISI 304 stainless steel.
Top panel made of 1.5 mm thick AISI 304 with orbital surface finishing, resistant to scratches.
Front panel constructed from 0.8 mm AISI 304 with satin surface finish.
Side panels constructed from 0.8 mm AISI 304 with satin surface finish.
Adjustable AISI stainless steel legs (±25 mm) for stable installation.
| Noodle Basket | Door | Voltage | Power | Weight |
|---|---|---|---|---|
| 9 | 2 | 380V / 50Hz | 9.2 kW | 75 kg |
Exterior Dimensions
| Product Model | Width | Depth |
|---|---|---|
| 800 mm | 800 mm | 800 + 50 mm |
