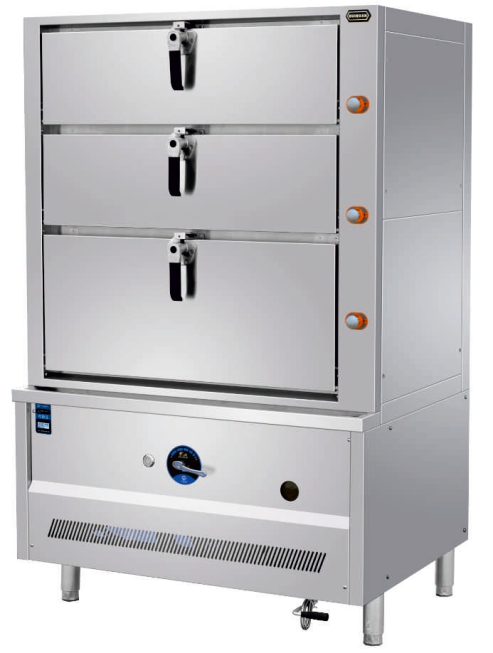

Three Deck Steam Cabinet – Gas
Description
Gas steam cabinet with three decks, equipped with high-performance burners delivering a total power output of 33 kW for rapid steam generation. Each steam chamber is individually controlled with three steaming operations, ensuring an ideal balance between performance and energy efficiency when required.
Powerful, compact, and versatile, the NGSCD steamer is perfectly suited for rice and a wide variety of steamed foods, making it an excellent choice for high-frequency Asian restaurants.
Main Features
High-performance atmospheric burners with a total power output of 33 kW.
Electric ignition system for reliable startup.
Equipped with pilot burners, safety thermocouples, gas valves, and gas knee levers.
Steam box engine with automatic water-filling system and built-in safety thermostat.
Three independently controlled steam chambers for flexible operation.
Top and middle decks with internal dimensions of 660 × 615 × 220 mm, bottom deck 660 × 615 × 400 mm (W × D × H).
Construction
Sturdy frame made of AISI 304 stainless steel.
Front and side panels constructed from AISI 304 stainless steel with hairline surface finish (0.8 mm).
Back panel made of AISI 304 stainless steel with hairline surface finish (0.8 mm).
Tubular stainless steel legs with height adjustment of ±25 mm.
Installation options: free-standing or mounted on a plinth.
Entire unit manufactured from high-grade stainless steel for durability and hygiene.
Product Specifications
| Shelf | Gas Type | Voltage | Gas Inlet Size | Water Inlet | Gas Pressure | Thermal Load | Weight |
|---|---|---|---|---|---|---|---|
| 4 pcs | LPG | 220V / 50Hz | DN25 | DN15 | LPG 2.8 kPa | 42 kW | 193 kg |
Exterior Dimensions
| Height | Width | Depth |
|---|---|---|
| 1900 mm | 910 mm | 900 mm |
